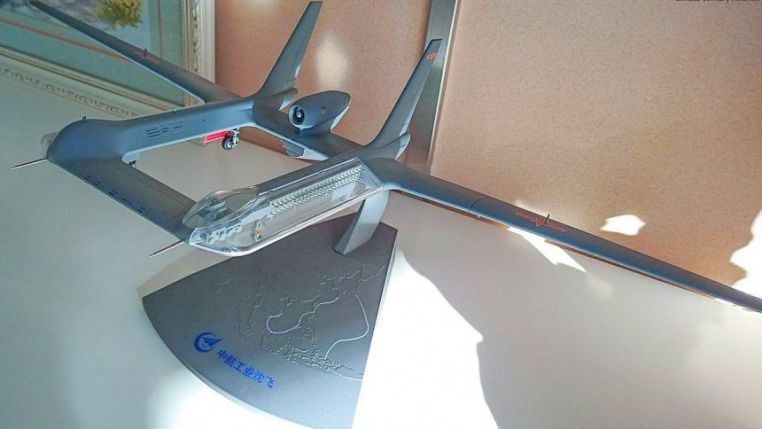

Analysis of the WZ-9 Divine Eagle shows advanced AEW capabilities that center on wide-area radar coverage in an unmanned platform. Observers in social media communities refer to a distinctive twin-boom and twin-wing layout, with a forward canard-like horizontal stabilizer and a rear main wing. Satellite communication equipment appears to sit in dorsal pods, along with phased array radars embedded in various fuselage positions. Official data remains limited, though early estimates place wingspan in the range of 35 to 45 meters and length near 15 meters. Endurance durations beyond 10 hours seem plausible, given the mission profile for AEW. Powerplant details remain largely unverified, though images suggest a pusher or conventional twin-engine arrangement, possibly turbofan or turboprop. Missions revolve around early warning, extended radar coverage, and network integration with PLA aerial assets. Observers expect advanced electronically scanned array radars with near-360-degree coverage.
Parameter | Details Wingspan | ~35–45 meters (approximate, based on imagery) Length | ~15 meters (approximate, based on imagery) Configuration | Twin-boom, twin-wing, forward canard, rear main wing, bridging vertical stabilizers Radar | Likely advanced AESA, distributed in pods and dorsal structures Communications | Likely includes satellite communication for networked AEW missions Endurance | Possibly 10+ hours Powerplant | Unconfirmed (turbofan or turboprop) Role | Airborne early warning, wide-area sensor coverage, integrated with manned AEW platforms.

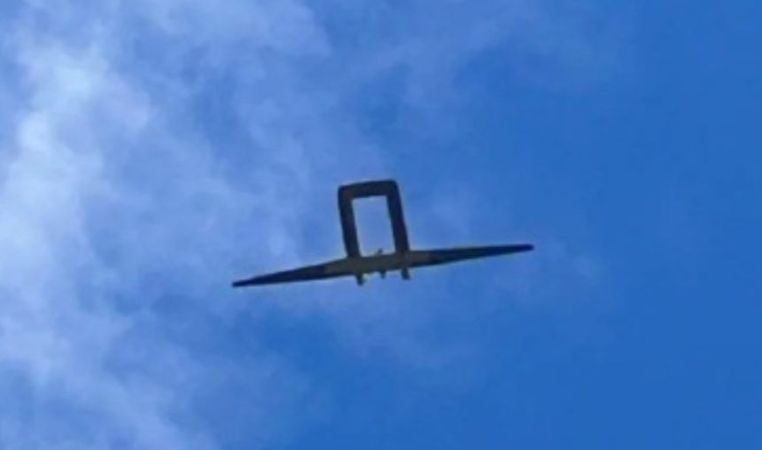

Observations indicate a top-bridge structure that encloses radar arrays, forming a distinctive rectangular ring shape over the fuselage. That shape suggests multi-azimuth scanning, allowing detection of air or surface targets at extended range. Intelligence estimates hint at moderate stealth shaping to reduce radar cross-section. PLA commentators on Chinese social media describe the WZ-9 as a next-generation high-altitude, high-endurance AEW UAV designed to augment manned platforms such as the KJ-500. Analysts in open sources interpret the twin-wing design as a solution for accommodating large radar arrays, electronic support measures, and advanced sensors while maintaining stable aerodynamic performance. Further official specifications remain concealed, though the unusual shape in images confirms a robust approach to AEW.
