TinySA Ultra based UAV signal detector with dedicated software
Specifications
The detector is based on the TinySA Ultra spectrum analyzer
Screen diagonal 4 inches
• Spectrum analyzer (calibrated) up to 6 GHz, can be used as an indicator up to 12 GHz.
• Sine wave generator up to 800 MHz or square wave signal up to 4.4 GHz.
Selectable bandpass filters from 200 Hz to 850 kHz.
Built-in low-noise amplifier (LNA) 20 dB.
Rechargeable lithium battery for up to 10 hours of operation
Maximum input level +10 dBm.
Output of sound signal about the presence of signals to the 3.5 mm earphone.

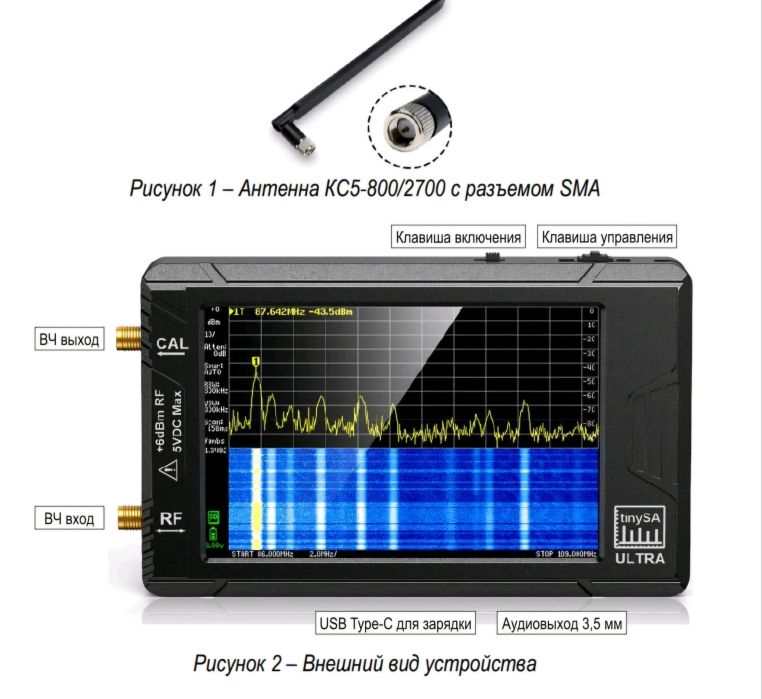

Figure 1 – Antenna KS5-800/2700 with SMA connector
Power key
Control key
IT 87.642MHz-43.5dli
RF output
CAL which
+6dBm RF A5VDC Max
RF input
RF
EtinySA
ULTRA
STOP 109.000MH
USB Type-C for charging
Audio output 3.5mm
Figure 2 – External appearance of the device
