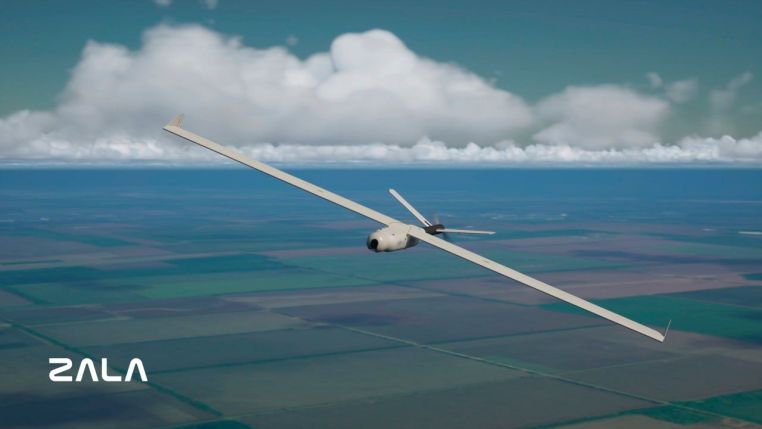

ZALA Z-20
A UAV with an electric motor and increased payload can be in the air for more than 6 hours at a distance of more than 100 km from the operator


Effective range
100+ км

Takeoff weight
17 кг

Endurance
6+ hr

Wingspan
4 000 мм
Submit request
Description
The ZALA Z-20 UAV is powered by an electric motor, thanks to which the aircraft can stay in the air for more than 6 hours, transmitting HD video at a distance of more than 100 kilometres from the control point. The unmanned system is used for reconnaissance and surveillance of objects of interest.

The ZALA Z-20 is equipped with an on-board calculator using modern artificial intelligence algorithms, which allows to quickly make the necessary decisions, increasing the efficiency of application compared to analogues of other manufacturers.

Fully compatible with the Z-16 model ground equipment, including the launcher and payloads, is an advantage and allows to significantly reduce the cost of retrofitting existing complexes, providing the opportunity to start using the new UAV in the shortest possible time. The new model has an increased payload capacity, allowing additional payloads to be installed depending on the task facing the UAV operator.

Key benefits
Signal retransmission
Radio Interference resistance
Low RCS and acoustic signature
Interference-protected communication channel
Counteraction against EW and anti-aircraft warfare
Smart navigation and communication module
On-board AI for object search and identification with priority target selection mode

Takeoff weight17 kgMaximum payload weight2,5 kgWingspan4000 mmEngine typeElectricEndurance6+ hrRange (video)100+ kmOperational altitude100-5000 mCeiling5000 mSpeed range65-110 km/hLaunchPneumatic-type launcherLandingParachute, air absorberOperating temperature range-40°C … +50°CMaximum wind speed15 m/sNavigationINS with SNS correction, double-range finder, alternative navigation system, video navigation system (VNS)
