PLAKR K-410 “Smolensk” pr.949A in floating dock PD-1 (captured German floating dock divided into 2 PDs)

Nuclear submarine with anti-ship cruise missiles (SSGN).  The project was developed by the LMPB “Rubin” under the leadership of the chief designer P.P. Pustyntsev, the chief designer for the Granit missile system – V.N. Chelomey.  In August 1977, after the death of Pustyntsev, I.L. Baranov became the chief designer.  Deputy Chief Designer – O.A.Gladkov (1983).  The 949A project was a development of the 949 project with an additional hard case compartment and an updated layout.  The initial plans provided for the construction of a large series of 20 SSGNs of project 949 – taking into account the two built SSGNs of project 949, it is likely that a series of 18 SSGNs of project 949 was being built.

On December 30, 1980, the head SSGN pr.949 K-525 was accepted into the USSR Navy, and the Granit missile system was adopted by the USSR Navy by the Decree of the USSR Council of Ministers of March 12, 1983. The head SSGN of the new pr.949A – K-148 –  laid down in workshop No. 55 of the Production Association “Sevmash” on July 22, 1982. The boat was withdrawn from the workshop and launched on March 3, 1985 and became part of the Fleet on September 30, 1986.

The boats of the project in the Navy have the unofficial name “Baton” – for the shape of the hull and the impressive size.

ПЛАРК пр.949А OSCAR-II

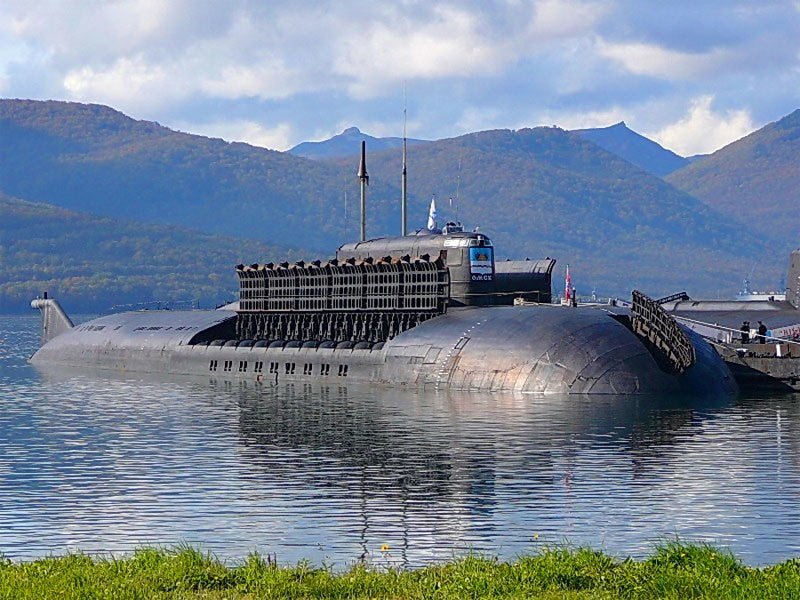

ПЛАРК К-186 “Омск” пр.949А OSCAR-II с открытыми крышками пусковых установок ракетного комплекса “Гранит”

Two-hull structure.  The robust case is made of steel AK-33 developed by the Central Research Institute “Prometey” with a thickness of 45 to 68 mm.  The robust hull consists of 10 compartments, cylindrical in shape of variable diameter in the bow and middle parts of the ship.  The end bulkheads of the pressure hull are cast, the radius of the bow is 8 m, the radius of the stern is 6.5 m. The rocket launchers are located outside the pressure hull at an angle of 45 to the horizon.  The design of the boat is specially equipped for navigation in the Arctic regions – there are special reinforcements for the light hull and cabin.

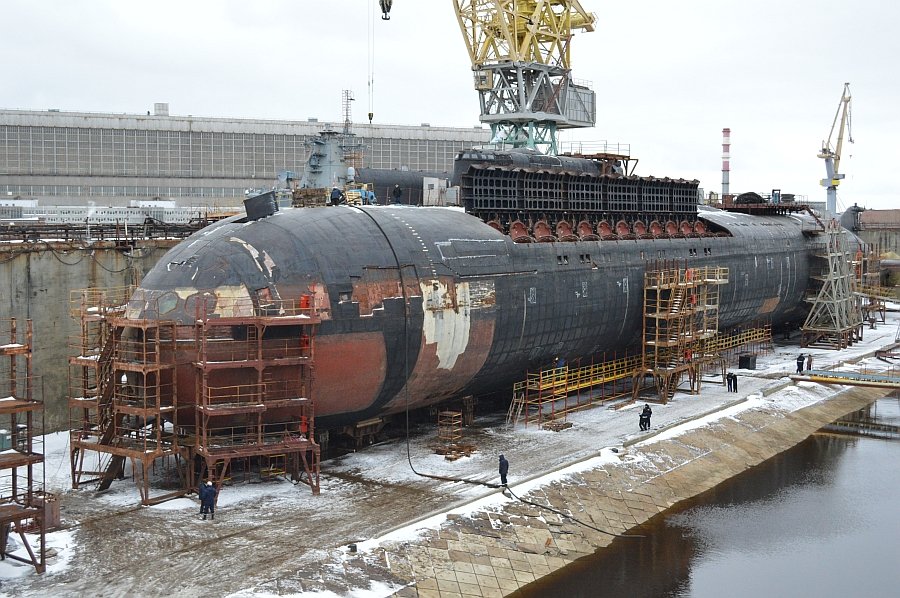

ПЛАРК К-410 “Смоленск” в док-камере ЦС “Звездочка”, ноябрь 2013 г.

The rugged case is divided into 10 compartments:

1. Bow torpedo;
2. The second central compartment – controls, batteries;
3. The third central compartment – combat posts and a radio room;
4. The fourth compartment – living quarters;
5. Fifth compartment (additional compartment) – electrical equipment and auxiliary mechanisms;
6. The sixth compartment – auxiliary mechanisms;
7. The seventh compartment – reactor;
8, 9. The eighth and ninth compartments – turbine, GTZA;
10. The tenth compartment – propeller motors.

ПЛАРК К-266 “Орел” у набережной ЦС “Звездочка”, декабрь 2013 г. – начало января 2014 г.

The fencing of retractable devices has a length of 29 m. It contains a pop-up rescue chamber (designed for the entire crew of the submarine).  Also in the fence are 2 VIPS devices for firing sonar countermeasures and containers with missiles for the Igla-1 MANPADS.  The light hull of the boat is covered with an anti-hydroacoustic coating.  A degaussing device is located along the light body.

The SSGN pr.949A differs from the SSGN pr.949 in an additional compartment of a strong hull, as well as a swept keel with an antenna container of a towed sonar of the “Pelamida” type.  The length of the strong hull of the project boats is 10 m longer than the length of the strong hull of the SSGN project 949.  The dimensions of the submarine rudders are larger than those of Project 949.

Means of rescue – a pop-up rescue chamber is installed in the cabin fence, accommodating the entire crew of the SSGN.

The propulsion system is unified with the remote control SSBN project 941 and is completely identical to the remote control SSBN project 949, has a block design, is made with a two-stage damping.
2 x water-cooled nuclear reactors OK-650M.01 (head K-148) and OK-650M.02 (other boats of the project) with a capacity of 190 MW each;
2 x steam generating units – the PPU cooling system up to 30% of the power is provided by the self-flow of cooling outboard water, which ensures a significant reduction in the noise of the submarine;
2 x block steam turbine plants “Azurit” developed by the Kaluga Turbine Plant with GTZA OK-9DM with a capacity of 49,000-50,000 hp each;
2 x backup electric motors PG-106 of low speed with a power of 306 hp each  (225 hp according to other sources)
Twin-shaft propulsion system with 6 bladed fixed-pitch twin propellers

2 x thrusters.

Power system:
2 x turbo generators with a capacity of 3200 kW
2 x backup diesel generators DG-190 / ASDG-800 with a capacity of 800 kW each
Lead-acid type rechargeable battery – 2 groups x 152 pcs

TTX boats:
Crew – 109 people (including 44 officers and 39 midshipmen)

Length – 154.8 m
Width – 18.2 m
Draft – 9.2 m

Displacement surface normal – 14700 t
Full displacement – 24,000 tons (19,400 tons according to other data)

Maximum underwater speed – 32 / 33.4 knots (under GTZA)
Economic underwater speed – 5 knots (under HED)
Maximum surface speed – 14.6 / 15 knots (GTZA)
Maximum immersion depth – 600 m
Immersion depth working – 500-520 m

Autonomy – 120 days

Armament:
Missile strike complex 3K45 “Granit” with 24 inclined launchers SM-225A with supersonic anti-ship missiles 3M45 “Granit” – SS-N-19 SHIPWRECK.  Missile launchers are located in two groups of 12 pieces on board outside the pressure hull.


Rocket 3M45 / SS-N-19 SHIPWRECK of the “Granit” complex in the NPO Mashinostroenie museum, Reutov (http://militaryphotos.net, edited)

Launcher SM-225A (project 949 – SM-225) – inclined (45 degrees) launcher developed by Design Bureau of Special Engineering (KBSM) for SSGN pr.949 and pr.949A.  Start “wet” – PU is filled with water before the start to reduce thermal loads on the PU and the carrier and equalize the pressure.  The PU consisted of a body and a launch cup with a rocket, cushioning means were placed between the PU body and the launch cup, guides were located inside the launch cup.  The rubber-cord connection prevented the impact of water on the shock absorbers.  During start-up and during loading and unloading operations, the glass was fixed.  During the crash on the Kursk SSGN, the missiles did not receive significant damage in the launcher.

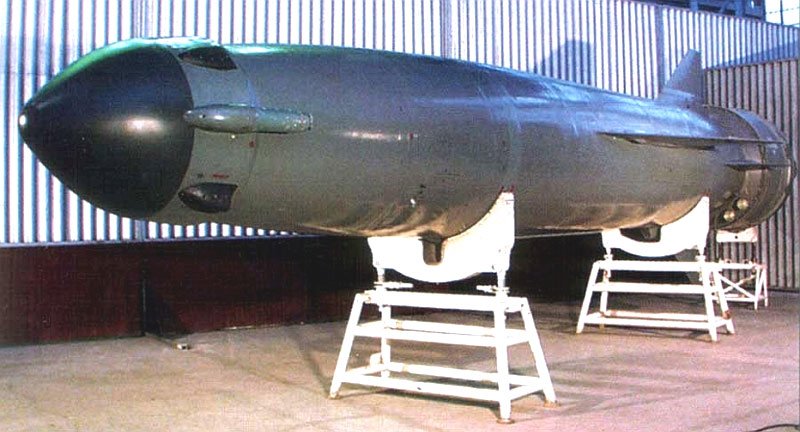

Ракета 3М45 / SS-N-19 SHIPWRECK комплекса “Гранит” в музее “НПО Машиностроение”, г.Реутов

Launcher SM-225A (project 949 – SM-225) – inclined (45 degrees) launcher developed by Design Bureau of Special Engineering (KBSM) for SSGN pr.949 and pr.949A.  Start “wet” – PU is filled with water before the start to reduce thermal loads on the PU and the carrier and equalize the pressure.  The PU consisted of a body and a launch cup with a rocket, cushioning means were placed between the PU body and the launch cup, guides were located inside the launch cup.  The rubber-cord connection prevented the impact of water on the shock absorbers.  During start-up and during loading and unloading operations, the glass was fixed.  During the crash on the Kursk SSGN, the missiles did not receive significant damage in the launcher.

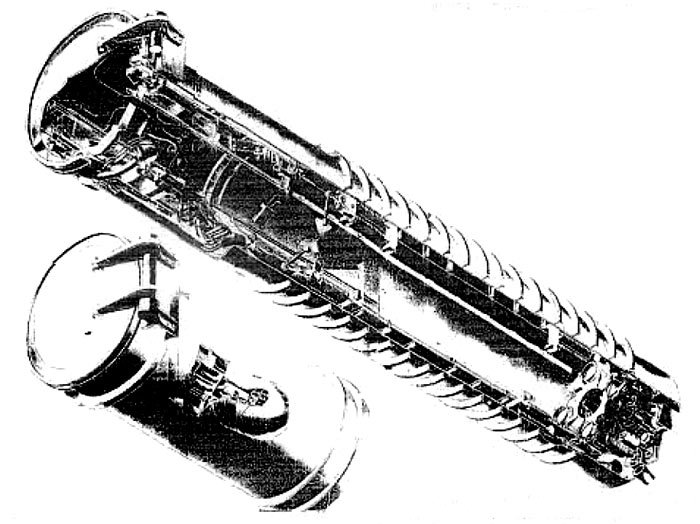

Пусковая установка СМ-225 / СМ-225А комплекса “Гранит” (Асанин В., Ракеты отечественного фота. // Техника и вооружение).
ПЛАРК К-266 “Орел” с открытыми щитами пусковых установок на СРЗ “Звездочка”, зима 2013-2014 г.г.

As of 2009, the possibility of using a special launch cup-liner in the SM-225A launcher for two 533 or 650 mm caliber missiles (Onyx, Caliber, etc.) was also discussed (in specialized media).  Presumably, the liner glass could be installed in the Granit missile launcher without altering the launch container, with the electrical connectors matching.

The SSGN is equipped with a system for routine and launch maintenance of the missile system with tanks for replacing the negative buoyancy of fired missiles and the corresponding drainage and air systems.  The system of compensation tanks ensures that the boat is in a given depth corridor when launching missiles, as well as in an emergency when filling the annular gap of four anti-ship missile containers from both sides.  Replacement tanks for negative buoyancy (CZOP) and lost positive buoyancy (CZPP) are located under the strong hull of the boat in the double-board space.  The underwater launch of the missiles was carried out after filling the annular gap in the containers with outboard water with the displacement of air from the annular gap into the compartment.  For the entire period of operation of the SSGN pr.949 / 949A, a full salvo in 24 Granit anti-ship missiles was never fired.

Shipborne automated control system (KACS) 3R45 “Granit” – provides the use of missiles of the 3K45 “Granit” complex – was installed on all SSGN pr.949A.  In 1991, at the Belgorod SSGN (plant No. 664, project 949AM), a decision was made to install KAFU 3R13.9 “Hornbeam” / “Granit-B” / “Granit-Bolid” – ensures the use of the 3K45 “Granit” complex as missiles  “and missiles” Bolid “.  In 2007, it was decided at the Belgorod SSGN (serial No. 664) to bring the KAFU 3R13.9 to an improved modification 3R13.9U to ensure the use of the Granit, Otvet, Caliber, Onyx and Turquoise missiles  , with the possibility of using Bolid missiles in the future.  As of 2009, the possibility of using KAFU 3R14P-949 – a modification of KAFU pr.  .949AM with the installation of this KAFU.

ПЛАРК К-186 “Омск” пр.949А OSCAR-II в доке, открыты торпедопогрузочный люк и волнорезные щиты в легком корпусе подлодки

The torpedo-missile weapon system is completely identical to the SSGN pr.949:
2 x 650 mm torpedo tubes
4 x 533 mm torpedo tubes
The torpedo tubes are equipped with an automated quick loader and a mechanized loading device with longitudinal and transverse feed racks.  Control system “Grinda”, designed for centralized automatic control of torpedo tubes, fast loaders.  Fire control system “Leningrad-949”, system of pre-launch preparation and control of missiles, equipment for pre-launch preparation and control of warhead missiles.  Remote control system for torpedoes “Signal-M”.  Code-blocking devices for ammunition with nuclear warheads.  Shooting with torpedoes is possible up to the working depth of immersion at speeds up to 13-18 knots.

Ammunition:
– option 1 – 28 missile torpedoes 83R (10 pcs), 84R (8 pcs), 86R (6 pcs) and 88R (4 pcs).
– option 2 – 28 USET-80 torpedoes (18 pcs), 65-76A (10 pcs).
– option 3 – USET-80 torpedoes (12 / 16 pcs), 86R torpedo missiles (4 / 2 pcs), 83R (10 pcs).

On the pier before loading onto the Tver SSGN pr.949A missiles of the Vodopad and RPK-7 Veter complexes, 2015 (photo – S. Konovalov

Torpedo tubes with air-hydraulic firing of ammunition of a new design, allowing for salvo firing.  The ammunition storage system uses a fundamentally new automatic adjustment of the position of ammunition on the racks relative to the axes of the torpedo tubes to compensate for the deformation of the strong hull of the submarine when the depth of immersion changes.  With the air-hydraulic method of firing into the breech of the TA from an impulse tank located outside the strong hull of the boat in front of the bow spherical bulkhead, sea water is supplied under excess pressure.  Excessive pressure in the tank is created by the piston of the hydraulic cylinder of the power plant located on a spherical bulkhead inside the first compartment of the pressure hull.  With this method of firing, the magnitude of the excess pressure does not depend on the depth of the submersion of the boat.

2 launchers for MANPADS “Strela-3” / “Igla-1” / “Igla”, ammunition load 10 missiles.  Ammunition is stored in the fence of retractable devices.  According to other sources, the ammunition load is 16 SAM 9M39 SAM 9K38 “Igla” on the K-148 SSGN (serial No. 617), K-173 (serial No. 618), K-141 (serial No. 662), K-150 (serial  .No. 663).

Equipment (data on equipment may be inaccurate – some of the data is borrowed from the article on SSGN project 949):
CIUS MVU-132 “Omnibus-949”, CIUS consoles are located in the main command post in the second compartment of the submarine.
Universal time system “Kamysh”

Target designation for the missile system is provided by the complex of marine space reconnaissance and target designation (MKRTS) 17K114 “Legend”.  Reception of information from a satellite target designation system is carried out on the surface or in a submerged position.
– antenna post “Selena” / PUNCH BOWL of the space system “Coral” or “Coral-B1” (development of the Kiev NPO “Kvant”) ICRC “Legend”.
– pop-up antenna of the buoy type “Lastochka” – for receiving target designation data using the “Legend” system and navigation data;
– antenna post of the marine reconnaissance target designation system MRSTs-2 “Success” (aviation target designation)

Hydroacoustic means:
– SJSC MGK-540 “Skat-3” (allows tracking up to 30 targets, range – up to 220 km) consisting of:
– navigation detector circular NOK-1;
– NOR-1 navigation detector;
– GAS mine detection MG-519 “Harp” / MOUSE ROAR;
– GAS-emergency transponder / beacon MGS-30;
– GAS for determining cavitation MG-512 “Screw”;
– echometer MG-518 “North”;
– GAS MG-543;
– towed GAS type “Pelamida”;
– part of the HAC hydrophones is located on the sides of the light submarine hull.

General detection radar MRCP-58 “Radian” SNOOP HEAD (submarines № 617 and 618) and MRCP-59 “Radian-U” SNOOP PAIR (other submarines)
State identification radar “Nichrome-M”;
DF radar “Zona” / PARK LAMP

To be continued…
