Hermes UAV Comms System

The Hermes communication system is a completely Russian development, allowing the use of FPV drones at a distance of up to 100 km.

The connection is made at a domestic enterprise and we are proud that our connection system can work anywhere on the planet.

The complex includes both a repeater and a transmitter (pictured), installed on the operator’s side in the standard connector of the drone’s control panel.

#связь #бпла #rc

**Missed the technical**⁉️

Today we will introduce you to the Hermes jam-proof communication kit

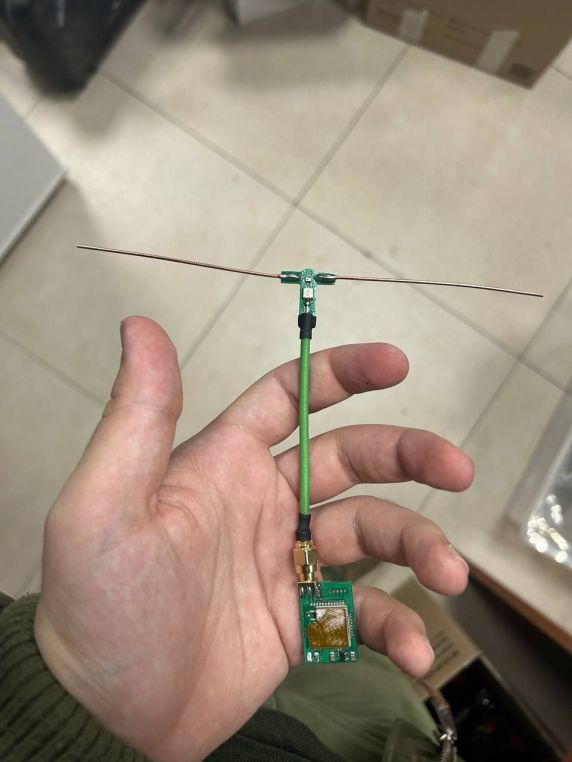

Photo 1-receiver

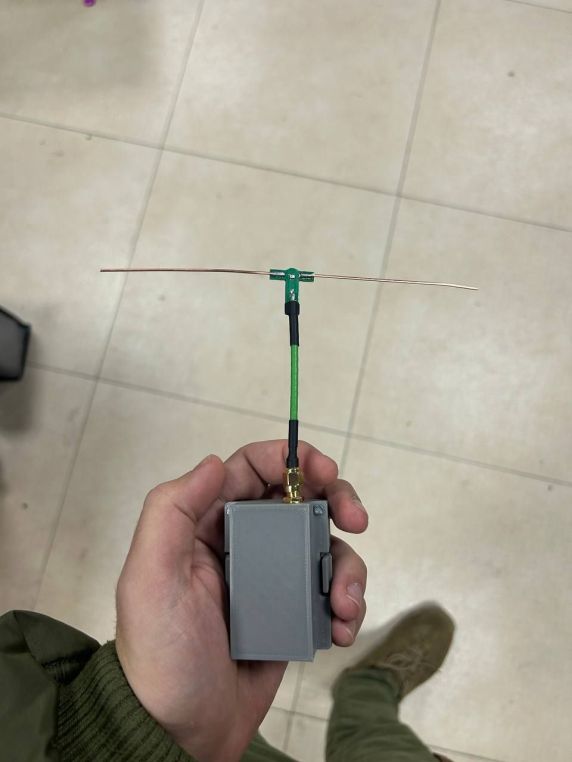

Photo 2-transmitter

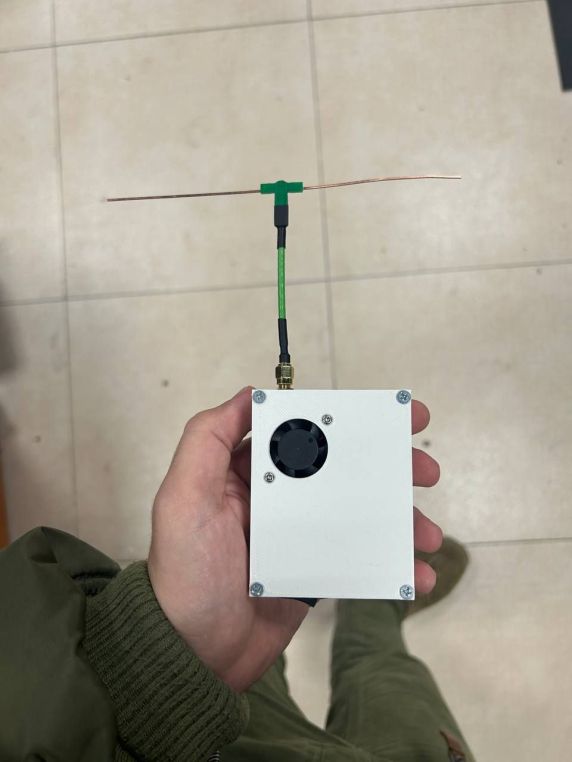

Photo 3-repeater

What can I say in summary: they are good, really good.

1) **Wide frequency range** In which you can move at your own discretion (felt the background, found a place in the spectrum – flew)

2)**Magic antennas with filter.**
They have only one drawback – the wire ends of the dipole bend, which changes the SWR, so they need to be straightened before flight.

3) An unexploded drone will not give up the bind phrase, and there are additional security systems.

4) The developer supports feedback and is ready to improve the project based on requests; during the work, improvements have already been made.

5)PPRCH

About my own experience:
We have a self-assembled electronic warfare system that jams the standard TBS/ELRS if the operator is further than 500 m from the jamming station.

So, when flying against this station at the standard *** MHz, we got a result 1.5 times better than TBS, but having dropped lower in the frequency range, we fly as if there is no electronic warfare (which is largely due to the filter built into the antenna).

This already made me happy.

We continued testing, directional antenna KROKS and 25 km were taken from the stand without any problems.

This system will soon be subject to mass combat work, so far the only requests to the manufacturer are:

1) Flexible antenna part to prevent antennas from deforming during transportation.

2) Slightly increase the time for reflashing the receiver.

3) Allow the range to be lowered even further.

4) Set the system to lower frequencies by default.

Afterword:
Dear colleagues, when you find an interesting solution from domestic engineers, do not try to hide it or monopolize it.

We are doing a common cause – promote it.
You will help both your colleagues and the manufacturer.

Hermes-Top connection.

How to install Hermes link in your FPV drone/cart?

3 simple steps:

1. Solder the receiver (3 wires). Do not solder Rx at all. Solder the receiver Tx to the Rx of the flight controller. In the flight controller settings, select crsf. Screw the antenna.

2. Insert the transmitter into the remote control. On the remote control, set the same settings as in the video. Don’t forget to install the antenna!

3. Restart the drone and the remote control. Everything works..

For men who are strong in spirit and body, for specialists in long-distance unmanned flights in conditions of high radio noise, for fans of remote work.

The Hermes project has released a special communication system on extremely low frequencies for VERY long flights (and even travel).

The name of this connection is “Group 4”, don’t try to decipher it, the number has nothing to do with the range.

This range will appeal to those who believe that REBmans can do everything, or almost everything.

We were asked to tell – we announced it for everyone:)

For those who have recently joined – KB “Germes” develops and manufactures in Russia a noise-resistant encrypted communication channel with a powerful frequency hopping and the ability to shift frequencies in a wide range.

If you are interested in the topic of FPV or the topic of ground robots – then you are welcome to come to us!

#фпв #управление #гермес #связь #нртк

What we saw here today cannot be written about, but the fact that we gave the birds a connection is possible.

Connections for drones – to be!

For orders write to @Spetsvyaz_bot
All purchases and communication – only through the bot! If you were written to in a personal message from this alleged account – these are scammers. We communicate only through the bot @Spetsvyaz_bot

Help with FPV calculations – 4817760095848671 Sber

#курск #гермес #помощь

About communication after the SVO, Formula 1 and cartoons.

Everyone probably knows that there are frequencies that are permitted and prohibited for use by organizations and individuals .

Everything that is happening now on the topic of electronic warfare and communications for drones, as the most actively developing topic (where we are represented as KB Hermes), is reminiscent of the bourgeois Formula 1 car races (if anyone remembers them from childhood, before the showing of Walt Disney cartoons).

And in this race, communications specialists like us come up with new solutions and new moves, expanding and narrowing the frequency hopping ranges, dodging and going into unknown forbidden frequency tables and grids, accelerating the race and forcing us to look for countermeasures.

Then the ever-vigilant REBmans catch up with the communications specialists and roast them on their still very immature, joyfully smiling ranges with a specific, powerful noise (conditionally) of 300-400 watts [or even kilowatts] from the hackneyed Chinese jammers from Aliexpress and cargo deliveries.

So, sooner or later the question will arise from the relevant government agencies : “Comrades, hello! We are here to check on the use [and it would be good if only so] of communication equipment in prohibited frequency ranges.”

Official fines are not the worst thing that can await all participants of this action.

And on the one hand, it is great that there are such proactive teams in the field of radio communications, growing in a year from garage production to production sites distributed in 5 cities of the country, with their own high-speed SMD assembly lines, quality control departments and development departments.

On the other hand, everything can quickly and quite prosaically end in one moment, and not as colorfully as in colorful foreign cartoons.

It is already necessary to draw public attention to this issue, improve legislative acts and make appropriate amendments.

Everything is like in Formula 1 in this matter: the needs and tasks of the SVO have significantly outpaced the current regulatory and legal acts.

And Soviet cartoons are much better. But you only understand this with age.

Everything will be fine, that’s 100%.

Put your thumb up and subscribe – here about Russian communications and related issues.

Write your thoughts on this topic in the comments.

UPD: by the way, we invite to our team all those who are proactive, goal-oriented, enjoy frequency response and frequency distribution function/frequency hopping, respect Popov and a little bit of Marconi. Write to us in the bot – @Spetsvyaz_bot
