Course “Radio Electronic Intelligence”
Methods, devices and areas of application in working with UAVs and preventing UAV threats

At the moment, unmanned technical means, including flying ones, due to their effectiveness, have become weapons and instruments of warfare.

https://arinst.ru/download-apk.php

Both in civil society and in military areas, the prevention of UAV attacks is a pressing problem. The protection of civilian objects is a topic raised at the government level and has not yet been finally resolved.
Constantly arising questions about which electronic warfare is most effective – the answer directly depends on the ability to conduct Radio Electronic Intelligence and assess the surrounding radio environment.

And it is the task of detection, as well as the task of obtaining critical data on enemy UAVs that is solved by ELINT – “Radio Electronic Intelligence”.
In our new unique course “SIGINT as an element of defense against UAVs” we consider the problems of detecting UAVs and other radio emitting devices using various equipment, and in more detail using the new radio spectrum analyzer model “Masterok”. We will also consider algorithms for preparing the SIGINT service for effective work in field conditions, developed on the basis of the latest data coming from the combat zone.

The course is taught by Alexey Vedmin
Artilleryman, combat veteran,
artillery reconnaissance instructor

“Kovaks”
Head of the “Clear Sky” project
The “Clear Sky” project creates modern, affordable means of detecting enemy UAVs and provides our soldiers with such means.

Two-day course.
Day 1 Theory in the classroom

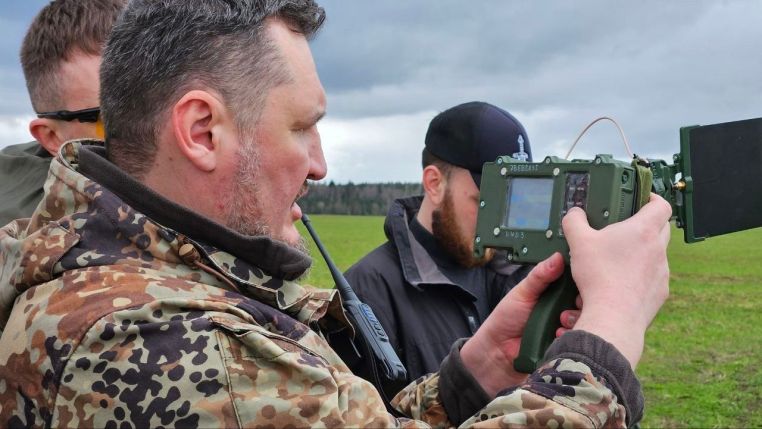

Day 2 – Practice at the training ground

Course objective: Timely detection of enemy UAVs (as well as systems of Radio Electronic Warfare, Radio Location Stations and other radio emitting devices) allows you to prepare an effective defense against enemy UAVs of various types, and if used correctly – to detect operators and repeaters through which UAVs are monitored and controlled.

📅. September 21-22 Start at 10.00.
✅Course “SIR as an element of protection against UAVs”
🙎‍♂️Instructor Vedmin A. V
💳15,000 p

METHOD OF ENEMY UAV DETECTION
Considering that the signal from the copter to the operator’s console is transmitted at the WiFi frequency, the frequency analysis method is used to detect the UAV.

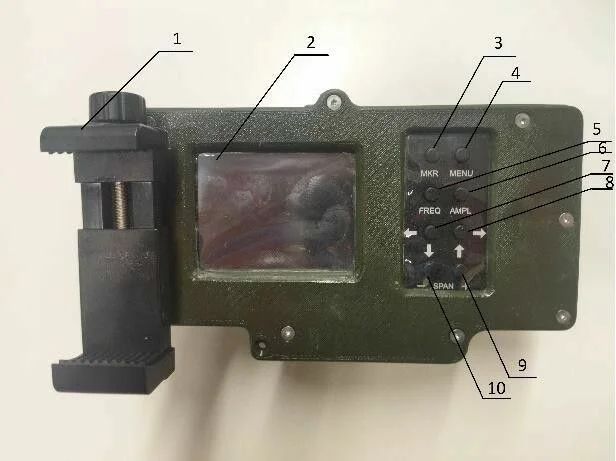

At present, the Masterok-3 PAK uses the following antennas:
KPM12-2400/5000 (Operating frequency range, MHz 2400-2500, 5150-5900) or
KR-15-750/2900 (wideband 2G\3G\4G antenna 15 dB) and the measuring
antenna KM-6-600/6000 manufactured by KROKS. The advantage of the first is
greater accuracy and measurement range due to stronger signal amplification, the second – in a wider observation range. It is recommended
to use both antennas in a complex.  From the antenna, by connecting the SMAmale-female and coaxial cable, the signal is fed to the ArinstSSA-TGR2 spectrum analyzer. When assembling the PAC,
according to the factory requirements of the manufacturers of microwave coaxial
connectors with a threaded connection type, when connecting, it is NOT
possible to allow the central contact entering the collet that receives it to rotate. To do this, it is necessary to hold the axial base
of the screwed-on half of the connector, allowing only the nut itself to rotate, and
not the entire screwed-on structure. This significantly reduces
scratching and other mechanical wear of the mating surfaces,
ensuring better contact and extending the number of switching cycles.
For ease of use with the PAC, as well as the possibility of remote
receiving and analyzing information by the PAC operator, it is possible to pair
the complex with a device based on the Android OS via a Bluetooth connection.  The Arnist software is available for download in the Google
market (see Appendix), does not require licensing. In the software itself, the operator of the PAK “Masterok-3” can set the required frequency range for observation, which allows him to search for enemy UAVs in all necessary ranges. Setting the frequencies
is done by opening the menu in the Arnist program by clicking on the
menu icon in the upper left corner
