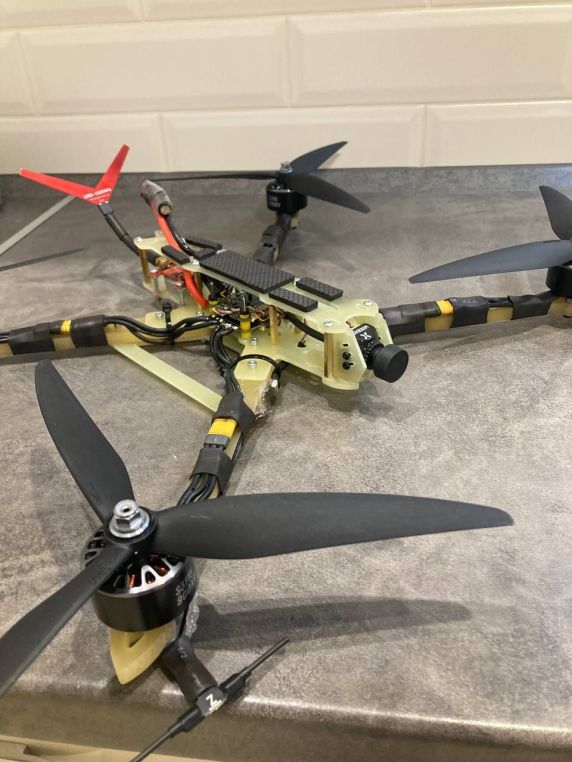

Presentation file – drone bomber / miner
#Бульдог -10

Its feature is a stabilized mode with altitude holding (like on the Mavic) and a rotating camera to make aiming for the drop convenient.
A greenhouse can be installed

Frame X-type. 10 inches reinforced. Carbon fiber, beam braces,
beam thickness 8 mm.
Propeller-motor
group
3115-900 kV, 1050-3, 60 A (70 A) x 4
Battery 6S 10400 mAh
ELRS control 750-1020 MHz or 370 MHz,
on request Hermes or Kuznechik
Reset device Operator control
Carrying capacity 3.5 kg, range 5 km (determined by the control range),
increases to 15 km when using a repeater and
reducing the payload.
Camera Rotating camera unit from +20° to -90° (targeted
drop, like on DJI Mavic) controlled by the operator

Defined when ordering:
– optical twilight (light sensitivity not less than
12000 mV/lux sec),
– combined unit, optical and thermal imaging
256×192 (for work on reconnaissance positions)
Masking
video signal
Disabling the video stream of the analog video signal from the operator’s remote control while maintaining the flight telemetry output (azimuth
flight direction, altitude, etc.) to ensure
calculation safety
Platform – stabilized mode with course and altitude holding
(like on DJI Mavic) for accurate delivery of the payload

– INAV
Video transmitter Analog, 1060-1360 MHz,  4W

Cost (specified when ordering):

optical 50,000
thermal imaging-optical 80
